The Sykam S 433 Amino Acid Analyzer is developed as a complete operational system completed with a series of ready to use buffers, reagents and columns for physiological fluids and food/feedstuff hydrolysate amino acid analysis with classical ninhydrin post-column reaction.

Sykam offers ion chromatography systems since the early 1990’s. With the first introduction of the S 150-Plus ion chromatography systems in 2022 Sykam offers a range of versatile ion chromatography systems suitable for the analysis of anions, cations, transition metals, organic acids and amines. The modular structure of the S 150-Plus series enables the user to configure a system tailored for the application of choice. Configurations range from a simple low-cost manual ion chromatography system ideal for teaching purposes at laboratory schools, up to advanced automated simultaneous anion/cation analysis systems complying with regulated GLP / GMP environments.

The S 155-Plus compact all-in-one ion chromatographs are table top instruments for anion or cation chromatography as a single unit at an appealing price level. As a “one-box” instrument they contain the eluent pump, manual injector, column oven, auto-suppressor unit (anion version only) and a conductivity detector. The S 155-Plus ion chromatographs are fully functional instruments, completed only with a chromatography data handling system of choice.

The S 600 HPLC is built as a modular configurable system. Each module of the S 600 HPLC system can be used as a stand-alone fully functional unit or as integral part of a complete system. Whether you upgrade an existing sytem – also from other brands! – or choose a complete system, the extensive digital and analog connectivity offers the user maximum flexibility to incorporate the Sykam S 600 series in the modern chromatography laboratory.

• The available pump configurations are: The isocratic pump, the low pressure quaternary gradient pump with adjustable mixing volume and dynamic mixer and optional built-in degasser and a high pressure binary gradient system. A high pressure binary gradient system can be configured by using two pumps. The pump is available as stainless and as biocompatible PEEK version. With three available flowrate ranges (micro, analytical and semi-preparative version), the pumpconfiguration can be adapted to virtually any HPLC application.

• The Autosampler with easy to remove stainless steel sample racks for vial loading and a capacity of 120 samples and optional sample cooling utilizes direct needle to valve injection minimizing dead volumes and sample loss.

• The UV-Detector is availabe as a one or two-channel detector with high quality optics and optional in-line scanning possibility and an integrated peak detector for preparative applications and control for fraction collectors.

• The Photodiode Array (PDA) Detector is available as a routine version with an optical resolution of 2,2nm (256 diodes) or as research version with an optical resolution of 0,8nm (1024 diodes). In UV-Detector mode, the detector records up to 4 wavelengths simultaneously.

• The Refractive Index Detector with programmable temperature control and thermally isolated optics results in highly stable baselines and optimal sensitivity.

• The Universal Fraction Collector S 6410 completes the system for preparative applications.

• The S 7515 Degasser available with up to four channels with low internal dead-volume of less then 500µl per channel.

• As control and chromatography data handling software (CDS) Sykam proposes the DataApex Clarity Software

Original Equipment Manufacturing

Looking for an OEM Supplier?

Apart from all instruments and products manufactured at Sykam GmbH,  as presented here on this website, the Sykam R&D and manufacturing facilities are well recognized by major technological companies around the world.

As an OEM-supplier Sykam offers all technical modules, instruments and complete systems being manufactured at our facilities to OEM-customers as well.

Reasons to choose Sykam GmbH as your OEM Supplier :

Low Entry Costs

All OEM instruments and systems are available at competitive entry cost. And to get your business running with minimal risk, we do not require an annual minimum number of units.

Predictable Cost Structure

Our commitment to your project means that our OEM support team seeks close cooperation with your project team to strive for realizing your ideas at lowest costs. This also when your project involves only a small periodical number of units.

Customer Specific Adaptions. Customer Specific Development.

With our manufacturing facilities, R&D and OEM support team our scope of supply is not limited to our standard modules, options and possibilities. Complete custom instrument design or firmware and hardware changes for existing modules are routine procedures for our team of specialists.

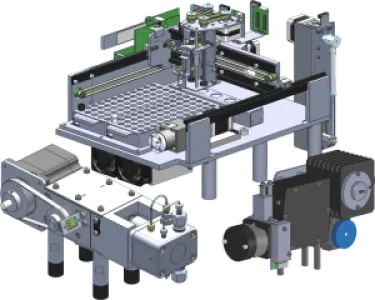

OEM Built-in Modules

Besides OEM Instruments & Systems, Sykam offers functional modules from any of the Sykam instruments presented here at this website as built-in modules. These modules can be adapted to your specific needs and scope.

Fast Implementation

By using our existing OEM built-in modules you will achieve the fastest  “time to market” for your product. Modules are available with or without controller PCB. For module integration within existing electronic controls, our OEM team supports you with any technical documentation required.

Our Capabilities

Our scope of supply covers electronics, liquid handling, detector systems, system automation and any of the chromatography products presented at this website.

With a range of CNC machinery (manual up to 5-axis) and in house PCB assembly and testing, we offer flexibility and fast response to changing needs.
